Anti-Glare vs Anti-Reflection Glass for Industrial Displays

Industrial displays are frequently deployed in environments where lighting conditions are difficult to control. Equipment may be installed on factory floors with strong overhead lighting, inside transportation terminals with mixed illumination, or outdoors where displays are exposed to direct sunlight.

In these situations, reflections from the display surface can significantly reduce readability. Operators may have difficulty viewing machine parameters, diagnostic information, or graphical user interfaces when glare dominates the display surface.

For engineers designing industrial HMI systems, display visibility is not only a usability concern but also an operational reliability issue.

Two common optical treatments used to improve visibility are anti-glare (AG) glass and anti-reflection (AR) glass. Although both technologies aim to reduce the impact of reflected light, they rely on different physical mechanisms and produce different optical characteristics.

Understanding the engineering differences between these approaches is an important part of designing sunlight readable industrial displays and outdoor HMI systems.

What Anti-Glare and Anti-Reflection Glass Are

Anti-glare and anti-reflection treatments are typically applied to the cover glass layer of an industrial display module. Their purpose is to reduce reflections that interfere with display visibility. However, the underlying mechanisms differ significantly.

Anti-Glare Glass

Anti-glare glass is produced using a micro-etching process applied to the surface of the glass.

This process creates microscopic surface structures that scatter incoming light instead of reflecting it in a single direction. As a result, reflections appear diffused rather than mirror-like.

• Typical characteristics include:
• reduced mirror reflections
• diffused ambient light
• matte surface appearance
• slightly reduced perceived sharpness

Because the surface structure diffuses light, the light emitted from the LCD panel is also slightly scattered. Fine text or small graphical details may therefore appear softer compared with untreated glass. Anti-glare surfaces are commonly used in environments where strong directional lighting is present.

Anti-Reflection Glass

Anti-reflection glass uses multi-layer optical coatings deposited on the surface of the cover glass. Untreated glass typically reflects approximately 4–8% of incident light per surface. AR coatings reduce this reflection through destructive interference between reflected light waves. Depending on coating design, surface reflectance can be reduced to approximately 1–2%, which increases overall light transmission.

In many industrial displays, total transmission through the glass surface can exceed 95%, improving display contrast in bright environments. Unlike anti-glare surfaces, AR coatings maintain image sharpness because they reduce reflections without diffusing the display light. For this reason, AR-coated glass is frequently used in sunlight readable displays and outdoor equipment.

Key Technologies in Industrial Display Optical Stacks

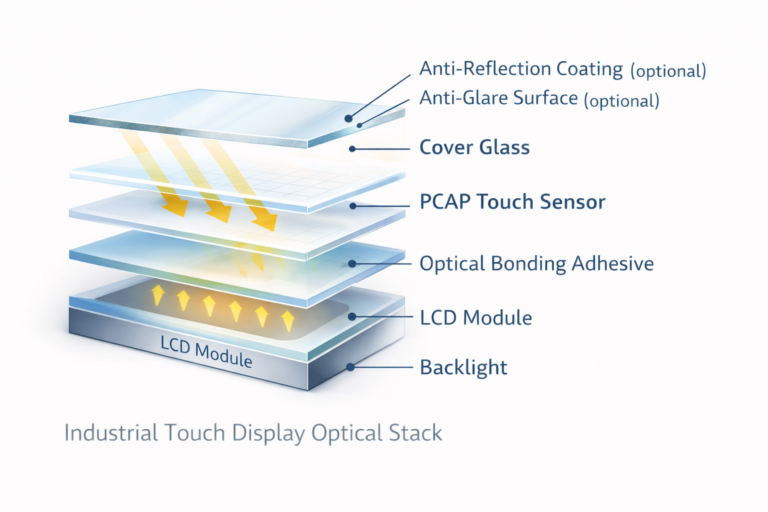

Anti-glare and anti-reflection treatments are usually integrated as part of a broader display optical stack that includes the LCD module, touch sensor, cover glass, and bonding layers.

Micro-Etched Surface Structures

Anti-glare glass relies on controlled surface roughness created through chemical or mechanical etching. Typical anti-glare surfaces use a surface roughness (Ra) in the range of approximately 0.1–0.3 μm.

If the surface roughness is too high:

-image sharpness decreases
-small text becomes difficult to read

If the surface roughness is too low: glare reduction becomes less effective

The appropriate surface structure depends on display resolution, viewing distance, and ambient lighting conditions. Anti-glare glass must also remain compatible with projected capacitive (PCAP) touch systems, which require stable electrical and optical characteristics across the cover glass surface.

Multi-Layer Optical Coatings

Anti-reflection coatings consist of several thin dielectric layers with different refractive indices. Each layer thickness is engineered relative to visible light wavelengths so that reflected light waves partially cancel through interference.

In industrial displays, AR coatings are often used together with optical bonding in industrial displays. Optical bonding removes the air gap between the LCD panel, touch sensor, and cover glass. Eliminating these interfaces reduces internal reflections and improves display contrast. Integrated display stacks combining AR coatings, bonding, and touch sensors are commonly used in industrial touch screen solutions, where optical performance and system reliability must be maintained across the entire display assembly.

Engineering Considerations: Anti-Glare vs. Anti-Reflection Glass

Ambient Lighting Environment

Lighting conditions are the primary factor in surface treatment selection. Manufacturing floors, warehouses, and production lines typically feature intense overhead lighting that creates localized, high-intensity reflections. Anti-glare glass diffuses these point-source reflections, improving operator visibility and reducing eye strain during extended use. Outdoor installations face a different challenge: direct sunlight creates broad, high-luminance reflections across the entire display surface. In these environments, anti-reflection coatings that reduce overall surface reflectance generally deliver superior display contrast and readability.

Optical Clarity Requirements

Anti-glare surfaces introduce light diffusion as a trade-off for glare reduction. This scattering effect can slightly degrade perceived image sharpness. Applications displaying small diagnostic text, detailed graphical interfaces, or high-resolution data may suffer visible softening of fine details. Anti-reflection coatings preserve image fidelity because they operate through optical interference rather than surface roughening. Precision-critical applications typically favor AR-coated glass for this reason.

Durability and Environmental Resistance

Industrial equipment demands surface treatments that withstand aggressive cleaning protocols, chemical exposure, and mechanical contact. Anti-glare finishes are integral to the glass substrate itself, offering inherent stability over extended service life. Anti-reflection coatings require engineered hardness and environmental sealing. Industrial-grade AR solutions must demonstrate validated performance across thermal cycling, humidity exposure, UV resistance, and abrasion testing. Durability validation is particularly critical for outdoor deployments and public-facing interfaces subject to vandalism or heavy use.

Touch System Integration

Projected capacitive (PCAP) touch technology dominates industrial display applications. Surface treatments must preserve the electrical and optical characteristics of the touch stack. Critical integration parameters include cover glass thickness, coating conductivity, optical bonding adhesive selection, and touch controller sensitivity calibration. Equipment manufacturers typically address these interdependencies through integrated industrial touchscreen solutions that ensure reliable co-performance of the optical stack and touch sensor subsystem.

Conclusion

Anti-glare and anti-reflection glass both improve industrial display readability, but they address different optical challenges.

Anti-glare glass reduces glare by diffusing incoming light through a micro-etched surface. Anti-reflection coatings reduce the amount of light reflected from the display surface while maintaining image clarity.

For industrial equipment designers, these optical treatments are typically considered alongside brightness optimization, optical bonding, and touch system integration when developing reliable sunlight readable display systems.
