Our Strengths

Features

The company was established in Shenzhen in 2011, and is the top domestic R&D and manufacturer of capacitive touch technology.
The company has an independent technology research and development team, independent research and development, production and sales of super-large metal mesh copper capacitive touch screen, is the first 86-inch Metal Mesh mass production manufacturer in China, we focus on smart education, smart business, smart retail, smart medical, etc. The touch application in the field of human-computer interaction terminal equipment is in a leading position in the industry. Our commitment is to continuously devote ourselves to product innovation, improvement and perfection, and to provide customers with cost-effective and high-quality products.
Projected Capacitive PCAP Metal Mesh allows Micron(Cinotop) to build touch solutions with greater accuracy, higher performance, and superior optical clarity. Metal Mesh provides greater signal strength as compared to other varieties of PCAP which brings not only greater accuracy but faster performance to our touch solutions. PCAP touch relies on very small differences in signal strength between the drive layer and sensor layer to determine where and when a touch happens on the screen.
The Metal Mesh sensor uses a latticework pattern of metal conductors to create an electrical field with a uniform signal strength on the sensor. Because these conductors are so fine, they are nearly invisible. Their extremely small size allows a greater amount of light from the display to reach the user, leaving the image bright, crisp, and clear.
Our core team is experienced in the field of touch screen technology and has strong strength in product technology innovation and development, and is committed to providing high quality, high standard products and quality services to the industry.
In addition to designing and manufacturing capacitive touchscreens using Metal Mesh Technology, the company also uses Metal Mesh Technology to extend into applications such as MiniLED backlight circuit boards, automotive heating films, 5G transparent antennas and EMI shielding films.

Strengths

1. Technical advantages of existing products

The first licensee in China of 3M’s worldwide patent in metal mesh.
Invisible line: Metal Mesh technology visible area line width line accuracy can be less than 10μm, the size can reach 110 inches.
Super narrow bezel (86inch multi-sided FPC, the narrowest bezel is 4.8mm, the widest bezel <1cm).
Strong anti-interference ability, high stability, strong flexibility, support Foldable/large-area shaped touch.
Touch sensitive (high reporting rate>120 point), high precision.
No optical problems (no moiré, black vision, rainbow pattern problems).
Precision active pen/pencil/electromagnetic capacitive pen for writing.
Support super-large size GFF touch screen superposition, can realize narrow frame and no frame.
Long service life (>60 million cycles).
The only one that can pass high temperature and high humidity (temperature 85 degrees, humidity 85%), high product stability and environmental reliability.
The surface of the product adopts waterproof and explosion-proof design.

2. Fill in the six global technology gaps

The world’s first large-size 86-inch flexible touch screen: it can realize special application environments such as flexible bending, wrapping, and irregular curved surfaces.
The world’s first waterproof touch screen: can realize underwater touch, strong anti-interference ability, low resistance, sensitive touch.
The world’s first medium touch screen larger than 10mm: there are special requirements for explosion-proof grade, which is more than the touch screen of banks and industrial systems.
The world’s first 110-inch touch screen: The super-sized capacitive touch screen is a subversion and innovation of technology, replacing the original infrared process and ITO indium tin oxide process, and does not require multi-piece splicing to achieve a single-chip capacitive integrated touch.
The world’s first projection touch screen: a low-cost integrated solution to realize touch on projection without the investment of LCD screen.
Supports ultra-fine active and passive pens (precision writing): can support up to 2mm from the tip of the pen.

3. Sample trial available

The company also supports product sample proofing.
Customers can purchase with confidence after trial production verification and evaluation.

4. Professional customization

The company can tailor-made products according to customer requirements.
The company can not only customize the touch screen, but also support the full-fit service of the whole machine.

5. Perfect high and low temperature performance

The company’s products have perfect resistance to high temperature and high humidity. The products have been tested in a constant temperature and humidity test box for more than 400 hours in a high temperature and high humidity environment of 85 °C, and they can work normally after the test. Through actual testing, we ensure that our products can work stably in special environments.

6. High standard management system

The company’s production advantage lies in the perfect quality management system and environmental management system, in line with ISO9001 and ISO14001 management standards, in addition, the company also complies with IATF16949 automotive industry and ISO13485 medical equipment and other quality system certification.

7. Patented technology

The company currently has more than 300 independent intellectual property rights and 150 invention patents, which are constantly increasing.

8. International certification

The company’s products have passed CE, FCC and other international mandatory safety certification and RoHS and other environmental protection tests.

9. Import of raw materials

Most of the company’s production raw materials are imported raw materials, so the products have good stability and durability.

10. Core technology

Better Performance of Metal Mesh Cu

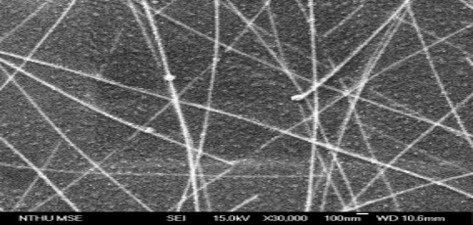

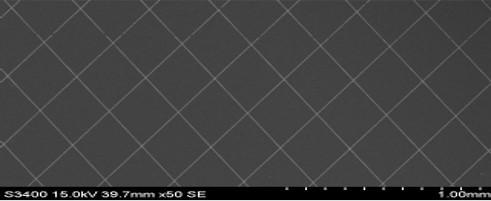

                                 Metal Mesh                                                                                       Nano-silver wire


/                                                Metal Mesh Cu                                    Nano-silver wire                                            ITO


Surface Resistance                      <0.1Ω/□                                             60~100Ω/□                                               150~400Ω/□


Electrode Process                        One process                                        Multiple process                                         Multiple process


Line space                                  10/10 um                                            30/30 um                                                  50/50 um


Flexibility                                    R5mm@100k                                       R5mm@100k                                            Failed


Ion Migration Problem                  NO                                                      Yes                                                           Yes


ITO: Only use in small& medium size, but resistance is too large and reaction time is too long.  above 55” cannot be applied.

SNW: The core reason is the poor stability of the product, which cannot pass the double 85 test (temperature 85 ° c, humidity 85%), and the silver ion migration problem cannot be solved.

Comparison of Environmental Test Results


/                                                      ITO                                                 SNW                                               Metal Mesh


Before reliability test

After reliability test

There is no any Ag migration problem in Metal Mesh Cu!
